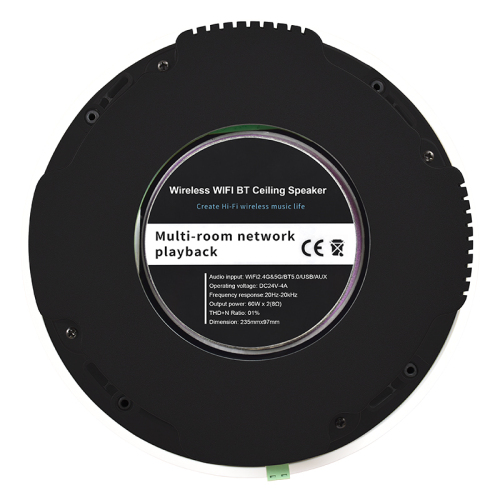

Active Ceiling Speaker

Item No.: 00100
Description
Description

Wireless WIFI Bluetooth Active Ceiling Speaker supports dual-band WiFi and Bluetooth wireless connection. The speaker is a 6.5-inch full-range speaker, integrated with a built-in tweeter, realizing full-frequency coverage of 60-20KHz, and SPL up to 90db. TI TPA3116D2 is selected as power amplifier chip for the ceiling speakers. TI PCM5121 is selected as DAC chip for the ceiling speakers. A professional tuner divides the frequency and adjusts the equalization of the sound. The level is clear and the sound quality is outstanding.

It is divided into a master and a slave, a pair of two speakers, the slave one is a passive speaker, through the audio line connection. The output power of the master and slave one is up to 60W, which makes it be applied to a variety of occasions.

The  wireless WIFI Bluetooth ceiling speaker also supports Apple Airplay function and the industry’s device interconnection standard DLNA. It can wireless play music on devices such as iPhone, iPad, or iPod touch through the Airplay. It can also use a third-party player which is in compliance with DLNA standards to play music on Android devices or PCs. Dual-band WiFi full-speed transmission and diversified experience Hi-fi music played without delay can be realized.



Function Introduction

Wi-Fi protocol: IEEE 802.11 a/b/g/n/ac 1x1 dual band WiFi 2.4 GHz and 5GHz

Bluetooth protocol: BT5.0 with EDR and BLE

Support WiFi/Bluetooth/U disk playback/ AUX

Support APP interconnection control

Support 10/100Mbps Ethernet access

Support HTTP/HTTPS/RTSP/MMS/TS protocol

Support Airplay/DLNA/Qplay streaming media protocol

Support Airplay, Spotify, Bluetooth multi-room playback

Support Spotify, TuneIn, iHeartRadio, TIDAL, Napster, Qobuz, Amazon Music, Qplay and other streaming media online and local playback

Support common lossless audio format decoding, up to 192kHz/24bit format

Support MP3AACFLACALACWMAAPEWAVOGG and other audio formats

Support 433Mhz remote control, Wireless Remote Control-360-degree direction.

Technical Parameters

Items

Descriptions

Product Name

Wireless WiFi Bluetooth Ceiling Speaker



Audio Input

WiFi 2.4&5G/Bluetooth5.0/AUX/U disk playback

Work Voltage

DC 24V-4A

Output Power

60W×28Ω)(1Master+1Slave)

Frequency Response

60Hz-20kHz

Harmonic Distortion

0.05%

SNR

90db

Sensitivity

88±3db

Music Format

MP3 / AAC / FLAC / ALAC / WMA / APE / WAV / OGG etc.

Music Source

Tuneln / iHeartRadio / Spotify / TIDAL / Napster / Qobuz etc.

Music Streaming Protocol

Airplay、DLNA、QPlay

Dimension

23.5cm×9.5cm

Net Weight

3.85kg (1Master+1Slave)
