WIFI Bluetooth Audio amplifier

Item No.: 00096
Description
Description

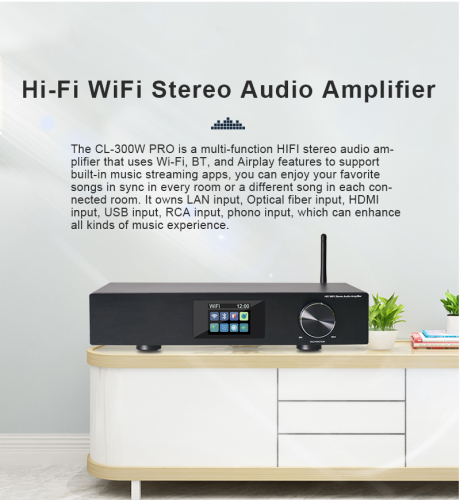

Audio amplifier supports dual-band WiFi and Bluetooth wireless connection. The power amplifier uses HIFI grade DSP - TI  PCM5121 and HIFI grade digital power amplifier chip - TPA3255, integrates HDMI (ARC), RCA input, optical fiber input, vinyl MM input, U disk playback, Its audio uses the latest WiFi streaming audio technology. The stereo output power can reach 550W, the overall SNR can reach 90db, and the distortion is less than 0.03%, the power is strong, and the sound quality is outstanding.

It is also supports Apple's AirPlay function and industry device interconnection standard DLNA and Qplay of QQ music, which can play music from iPhone, iPad or iPod touch etc.devices through AirPlay function, and can also use a third-party PLAYER that complies with DLNA standards to play music on Android devices or PC. Multiple interfaces, multiple experiences.



Function Description

Wi-Fi protocol: IEEE 802.11 a/b/g/n/ac 1x1 dual band WiFi 2.4 GHz and 5GHz

Bluetooth protocol: Bluetooth5.0 with EDR and BLE;

Support WiFi/Bluetooth/RCA input/PHONO input/Optical input/HDMI (ARC) input/U disk playback

Support 10/100Mbps Ethernet access

Support RCA output / Woofer output / Optical output

Full-frequency stereo output;

Support TFT color LCD

Support APP interconnection control

Support HTTP/HTTPS/RTSP/MMS/TS protocol

Support Airplay/DLNA/Qplay streaming media protocol

Support multi-room playback such as Airplay, Spotify, Bluetooth, RCA IN, etc.

Support Spotify, TuneIn, iHeartRadio, Amazon music, TIDAL, Napster, Qobuz, QQ music and other streaming media online and local playback.

Support common lossless audio format decoding, up to 192kHz/24bit format

Support MP3/AAC/FLAC/ALAC/WMA/APE/WAV/OGG and other audio formats

Support NEC infrared remote control

The main technical parameters

Name

Technical Parameter

Product name

 Hi-Fi WIFI Stereo Audio Amplifier

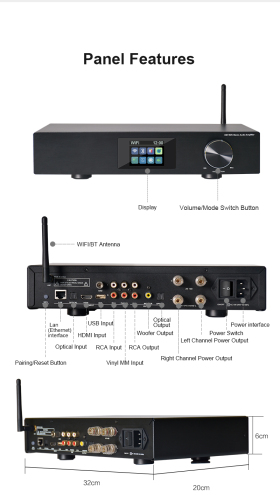

Audio Input

WiFi 2.4G&5G / Bluetooth 5.0 / RCA / PHONO / Optical fiber / HDMI (ARC) / USB playback

Audio output

SPEAKER R+L / RCA / Optical fiber / Woofer

Operating Voltage

AC 100V~240V

Output Power

2×275W (4Ω) 2×150W (8Ω)

Frequency response

20Hz - 20kHz<±2dB

Harmonic distortion

0.03%

SNR

90db

RCA input sensitivity

1V

Optical fiber output

0db(1khz 0db)

Speaker impedance

2-16Ω

Vinyl input sensitivity

MM Phono--5mV

RCA output rated level

1Vrms(1khz 0db)

Music source

Spotify, iHeartRadio, Amazon music, TIDAL, Napster, Tuneln, Qobuz, Qplay

Music streaming protocol

Airplay、DLNA、QPlay, UPnP

Audio format

MP3 / AAC / FLAC / ALAC / WMA / APE / WAV / OGG, etc.

Size

32cm×20cm×6cm

Weight

3.4kg (with packaging)
